infrared.infrared.ClusterTreeBase Class Reference

Cluster tree base class. More...

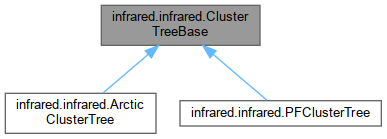

Inheritance diagram for infrared.infrared.ClusterTreeBase:

Public Member Functions
	__init__ (self, model, td, EvaluationAlgebra)
	evaluate (self)
	is_consistent (self)
	construct_cluster_tree (self, domains, td)
	Construct the cluster tree object of the C++ engine.
	get_bag_assignments (self)
	Get assignments of functions and constraints to the bags.
	find_all_bags (self, bvars)
	Get the indices of all bags that contain a set of variables.
	find_bag (self, bvars)
	Find a bag that contains a set of variables.
	assign_to_bags (self, constraints)
	assign constraints or functions to bags
	assign_to_all_bags (self, constraints)
	assign constraints or functions to all possible bags

Protected Attributes
	_model
	_td
	_EA
	_bagsets

Detailed Description

Cluster tree base class.

This class provides functionality to construct and populate C++ cluster trees with constraints and functions.

It is used as base of the specialized cluster tree classes, which wrap interface the C++/libinfrared cluster tree classes.

Constructor & Destructor Documentation

__init__()

infrared.infrared.ClusterTreeBase.__init__	(		self,
			model,
			td,
			EvaluationAlgebra
	)

Reimplemented in infrared.infrared.PFClusterTree, and infrared.infrared.ArcticClusterTree.

Member Function Documentation

assign_to_all_bags()

infrared.infrared.ClusterTreeBase.assign_to_all_bags	(		self,
			constraints
	)

assign constraints or functions to all possible bags

   Assigns constraint/function is to each bags that contains its
   dependencies.

Parameters

constraints

list of constraints

Returns

list where constraints are placed at corresponding bag indices

assign_to_bags()

infrared.infrared.ClusterTreeBase.assign_to_bags	(		self,
			constraints
	)

assign constraints or functions to bags

   Assigns such that each constraint/function is assigned to exactly one bag
   that contains its dependencies

Parameters

constraints

list of constraints

Returns

list where constraints are placed at corresponding bag indices

Precondition

for each constraint/function there is one bag that contains its dependencies; otherwise the constraint/function is not assigned

construct_cluster_tree()

infrared.infrared.ClusterTreeBase.construct_cluster_tree	(		self,
			domains,
			td
	)

Construct the cluster tree object of the C++ engine.

Parameters

domains	description of the domains
td	tree decomposition

evaluate()

infrared.infrared.ClusterTreeBase.evaluate

(

self

)

find_all_bags()

infrared.infrared.ClusterTreeBase.find_all_bags	(		self,
			bvars
	)

Get the indices of all bags that contain a set of variables.

Parameters

bvars

the set of variables

Returns

list of indices of the bags that contain bvars

find_bag()

infrared.infrared.ClusterTreeBase.find_bag	(		self,
			bvars
	)

Find a bag that contains a set of variables.

Parameters

bvars

the set of variables

Returns

index of first bag that contains bvars (or None if there is none)

get_bag_assignments()

infrared.infrared.ClusterTreeBase.get_bag_assignments

(

self

)

Get assignments of functions and constraints to the bags.

   straightforward non-redundant assignment of constraints and functions,
   each to some bag that contains all of their variables

   assumes constraints and functions specified in self._model

is_consistent()

infrared.infrared.ClusterTreeBase.is_consistent

(

self

)

Returns

whether the cluster tree is consistent

Member Data Documentation

_bagsets

infrared.infrared.ClusterTreeBase._bagsets

protected

_EA

infrared.infrared.ClusterTreeBase._EA

protected

_model

infrared.infrared.ClusterTreeBase._model

protected

_td

infrared.infrared.ClusterTreeBase._td

protected

---

The documentation for this class was generated from the following file:

• src/infrared/infrared.py
