Online resources and software environment

This document is hosted online as Jupyter notebook with precomputed results. Download this file to view, edit and run it in Jupyter.

We recommend to install all required software using Mamba (or Conda) and PIP.

mamba create -n infrared -c conda-forge infrared jupyter jupytext matplotlib seaborn graphviz logomaker

mamba activate infrared

# optionally install the Vienna RNA package (only Linux or MacOS)
mamba install -c conda-forge -c bioconda viennarna

pip install graphviz

mamba deactivate infrared

Start the Jupyter notebook server after activating the environment

mamba activate infrared

jupyter notebook

The original sources are part of the Infrared distribution and hosted on Gitlab (in Jupytext light Script format).

Disclaimer

This notebook contains code for the examples from the bookchapter "Developing complex RNA design applications in the Infrared framework" by Hua-Ting Yao, Yann Ponty, and Sebastian Will.

This document should be used in parallel to the bookchapter.

The main purpose of this notebook is to allow readers of the chapter to easily run examples and possibly experiment with the code. Code is therefore given in the same order as in the bookchapter and under corresponding section titles. In turn, the notebook contains almost no explanations, as these are given in the manuscript.

Compared to the code given in the chapter, we extended some code to make it even more illustrative, e.g. by plotting results. Finally, we provide code to generate figures of the bookchapter in the Appendix.

1 Introduction

#[Intro]
import infrared as ir
import infrared.rna as rna

import matplotlib.pyplot as plt

target = "((((((((((...))))((((....))))))))))"
model = ir.Model(len(target), 4)
model.add_constraints(rna.BPComp(i, j) for (i, j) in rna.parse(target))
sampler = ir.Sampler(model)
samples = [sampler.sample() for _ in range(10)]

sequences = [rna.ass_to_seq(x) for x in samples]

sequences

['GCAGUUGGAGCAGUUUUGCGAGGUUUCGCAACUGC',
 'CCGUGGGGCUUGAGGUUUCUCAAUGGGGAUUACGG',
 'UGGUGGUGGGCCUCCCAUUAAAUUCUUAGUUGCUA',
 'CUGUCACGUUCUCAGCGAAUAAAUAUAUUUGGUAG',
 'CGUUUGGAUUACAAGUUAAGUAAGAAUUUUAGGCG',
 'UCGAGGAAUUUGGAAUUGUAGUCUGUUAUCUUCGG',
 'AGCGUACGGCGCAGCUGCCGAGUCGUCGGUGUGCU',
 'AAGGUUGGGACCGUUCUGGGAGGAUUCCCAGCUUU',
 'GGAGGAAUGACUAUCGUGGGAUUUUUCCUUCCUUC',
 'ACGGUGACCGCUUCGGUUGUCGCUUGGCGUACUGU']

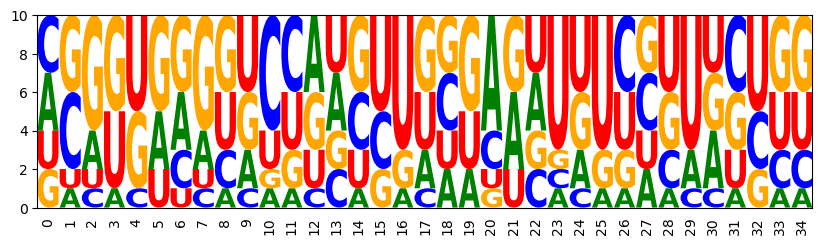

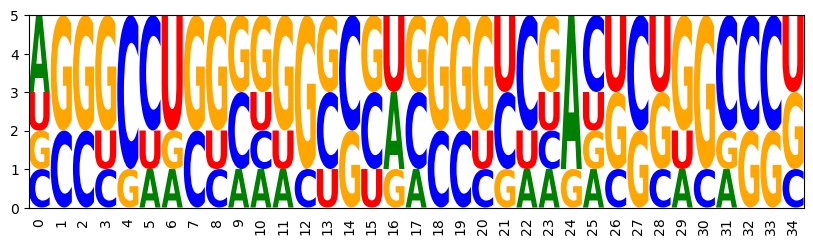

We are going to visualize the nucleotide frequencies of the sampled sequences if module logomaker is availabe. (e.g. install by conda install logomaker)

def draw_logo(samples,name=None):
    import logomaker as lm

    sequences = [rna.ass_to_seq(x) for x in samples]

    matrix = lm.alignment_to_matrix(sequences = sequences)
    logo = lm.Logo(matrix)
    logo.style_xticks(rotation=90, fmt='%d', anchor=0)
    logo.ax.xaxis.set_ticks_position('none')
    if name is not None:
        plt.savefig(name)
    plt.show()
    logo.ax.xaxis.set_tick_params(pad=-1)
    return sequences

def opt_draw_logo(samples,name=None,num=10):
    try:
        draw_logo(samples,name)
    except ModuleNotFoundError as e:
        print(e)
    for x in samples[:num]:
        print(rna.ass_to_seq(x))
    if len(samples)>num:
        print("...")

def assignments_to_seqs(xs):
    return [rna.ass_to_seq(x) for x in xs]

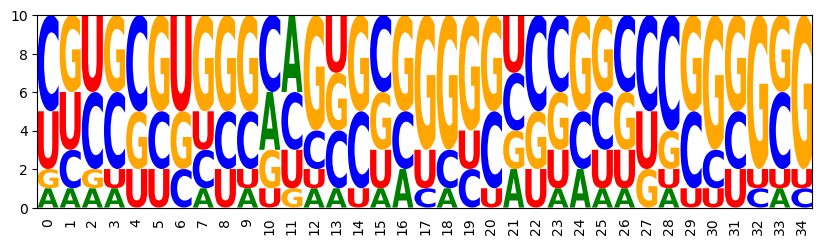

opt_draw_logo(samples)

png

GCAGUUGGAGCAGUUUUGCGAGGUUUCGCAACUGC
CCGUGGGGCUUGAGGUUUCUCAAUGGGGAUUACGG
UGGUGGUGGGCCUCCCAUUAAAUUCUUAGUUGCUA
CUGUCACGUUCUCAGCGAAUAAAUAUAUUUGGUAG
CGUUUGGAUUACAAGUUAAGUAAGAAUUUUAGGCG
UCGAGGAAUUUGGAAUUGUAGUCUGUUAUCUUCGG
AGCGUACGGCGCAGCUGCCGAGUCGUCGGUGUGCU
AAGGUUGGGACCGUUCUGGGAGGAUUCCCAGCUUU
GGAGGAAUGACUAUCGUGGGAUUUUUCCUUCCUUC
ACGGUGACCGCUUCGGUUGUCGCUUGGCGUACUGU

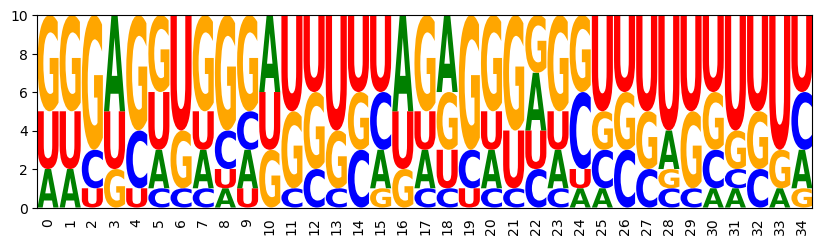

Multiple targets

#[Multiple_targets]
targets = ["((((((((((...))))((((....))))))))))",
           "((((((.((((((((....))))..))))))))))",
           ".((((((...)))))).(((((((....)))))))"]

for target in targets:

model.add_constraints(rna.BPComp(i, j) for (i, j) in rna.parse(target))

sampler = ir.Sampler(model)
designs = [sampler.sample() for _ in range(10)]

samples = [x for x in designs]
opt_draw_logo(samples)

png

GGGACAUAGGAUGUCUGGAGAUGGCUCUUUGUCUC
UUCUGAGUCCUUCGGAUUUUCGAUGGGGAUUGGGA
UUCUGUGUCUUGCGGAUUCCUGCUUGGGAGUAGGA
AGGAGGUGGGAUUUCCAGGGGGAAGUCCUUCUUUU
GGGAGUUGGAAGUUUUAAGGGGUGAUUUUGUUUUU
AAGGGUUAGAGGUUUUAAGGGGUACUUCUGUCCUU
GAGACGUGGGGUGUUUAGAGGUAGGCUUUUGUUUC
UUUUGGGCUCUCUGGGUCUCUGGCCAGGGUCGGAG
GGGGUCCGAGGGGCUCGGAGGUCGCCUUCGAUUUC
GGGACGUGGGAUGUCCAGAGACGGGUCUUCGUUUU

#[Multiple_targets-bpenergy]
for target in targets:
    model.add_functions([rna.BPEnergy(i, j, False) for (i, j) in rna.parse(target)], 'energy')

3 Methods

3.1 Elementary use of Infrared - A simple design model

#[3.1]

n = 35

model = ir.Model(n,4)

target = "((((((((((...))))((((....))))))))))"

model.add_constraints(rna.BPComp(i, j) for (i, j) in rna.parse(target))

sampler = ir.Sampler(model)

samples = [sampler.sample() for _ in range(10)]

sequences = [rna.ass_to_seq(sample) for sample in samples]

opt_draw_logo(samples)

png

CUGUGGGGAGUAUCUCUGCGCCGUAGCGCUCGCGG
UGGGGUUAGUGUUGCUAUCUGGUACCGGGGCUCCA
UGGGGUUCAUAGGAUGAUCAAAUAAUUGGGUUCUA
CUAAUUCGAUCCGAUCGACGAAGGCUCGUGAUUAG
UUUGGGGAGUUAAACUUUUUGGUUGUGGGUCCAGG
GGUGGUGCGGAGAUUGCGACUAGUGAGUUACCGCU
CGGGAGCUAUUGGAUAGACUGUUAUUAGUUUUUCG
UAAUAAGUCCAGCGGGCGCGGACACUCGUUUGUUA
UUGCCCUGGUUGCGUCAUUCCCCAAGGGGGGGUGA
UUCAUGGUAUUACAUGCUCGAAUCGUUGGUGUGAA

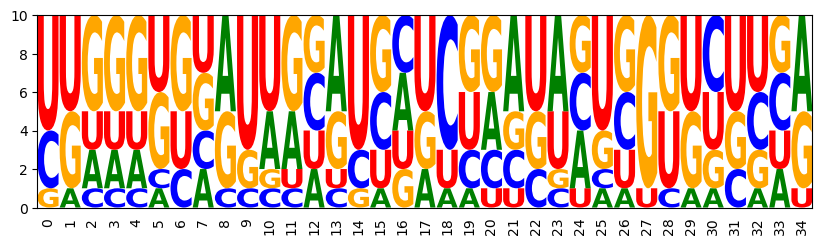

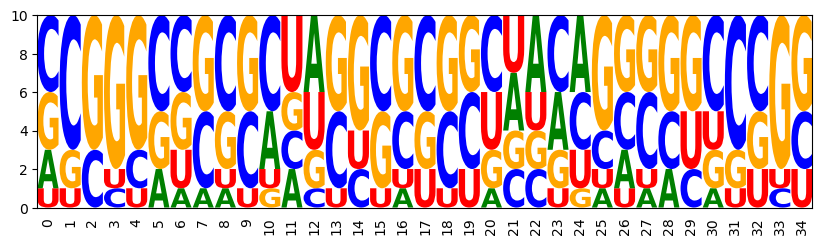

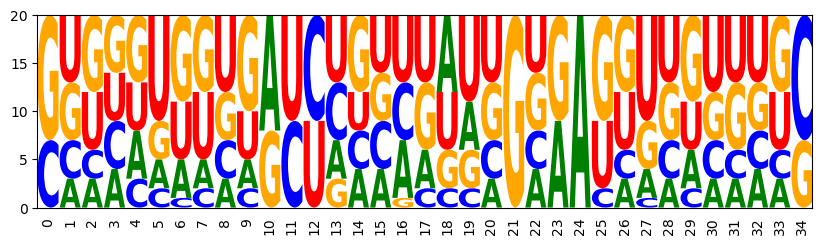

3.2 Sequence constraints in IUPAC code

#[3.2]

iupac_sequence = "SNNNNNNNNNRYYNNNNNNNNGNRANNNNNNNNNS"

for i, x in enumerate(iupac_sequence):

model.add_constraints(ir.ValueIn(i, rna.iupacvalues(x)))

sampler = ir.Sampler(model)

samples = [sampler.sample() for _ in range(20)]

opt_draw_logo(samples)

png

CUACAUUCCGGUCCGGAUUUUGGGAGGGAAUGUGG
CUCUAGUGUGAUUCGCAGUGCGAGAGCGUCUAGAG
CGUUGUAUUUAUCGGGUCUUUGUAAGGAGGUGGCG
CGGGUGGGGGACCCCCUACGAGUAAUCGUCAUUCG
CGGGGUUGCUGUUAGUACAAGGCGAUUUGAUUCUG
GUGGUGAGUGAUCUACUUAACGAGAGUUGUGCCGC
GGACCUUUAAGCUUUAAGUUAGCAAUGACGGGUCC
GUUAGUUUAGACCUUGAUAUAGGGAUGUGGCUGAC
GAGGCUGACUAUUAGUCAACUGGGAGGUUAGCCUC
GAUCAUUUCUACUAGAAGGAUGUGAGUUUGUGAUC
...

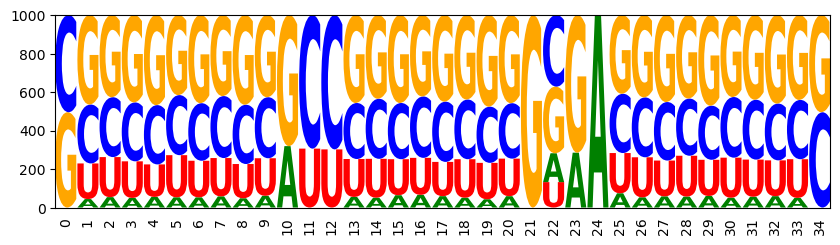

3.3 Control of GC content

add functions for GC control:

#[3.3]

model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')

set a weight and sample

model.set_feature_weight(1, 'gc')
sampler = ir.Sampler(model)
samples = [sampler.sample() for _ in range(1000)]

opt_draw_logo(samples)

png

CUGGGCGAGCGUCGCUCUAGGGGGACCUGGCCCAG
GGCCGGGGGUGCCGUCCGGCCGGGAGGCCCCGGUC
GGUUUGUCGGAUCUCGGGUCGGCGAUGACCAGGCC
CGGUGCGAUUGCUGGUCUGCUGGAAAGCGGCGCCG
GGACCCCCGCGCCGUGGCCUUGCGAGAGGGGGUUC
CCCGCCCGGAGUCUCUGUCCCGGGAGGGGGGCGGG
CGCCGCUUCGGCUCGGGGAGGGUAACCUCGUGGCG
CGCCGGCCCGGCUUGGGCGGCGGAAGCCGCCGGCG
GCGGGGGUGUGCUACACCCCAGAGAUGGGCCCCGC
CGCCGGCCGGACUUUGGGGGGGCGACCCCUCGGUG
...

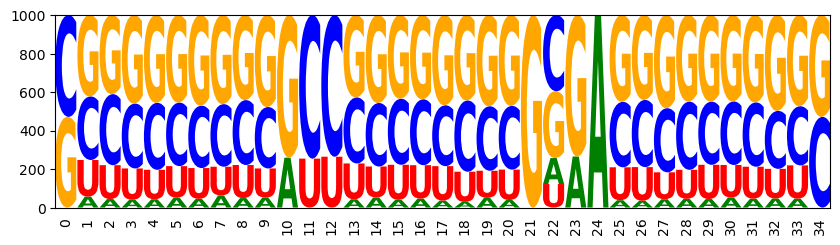

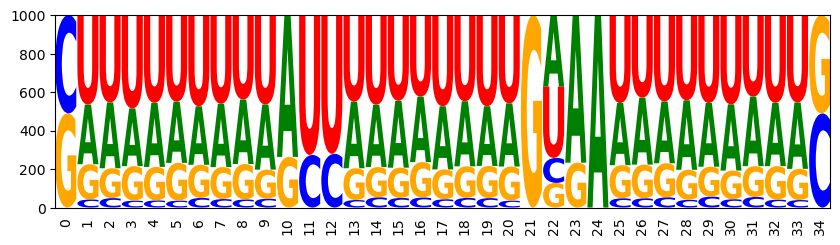

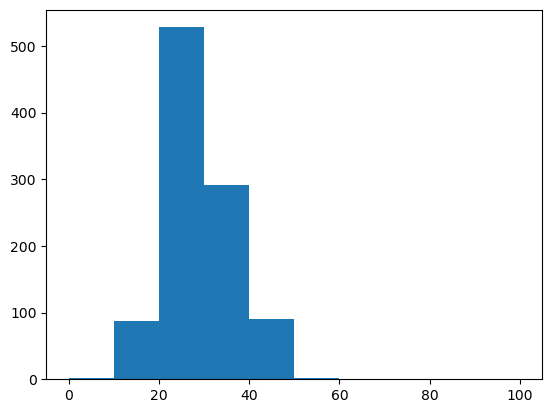

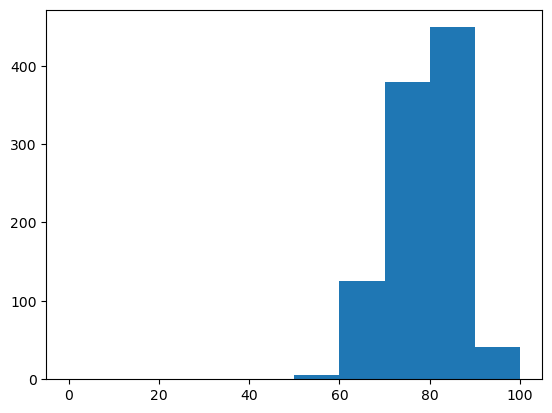

# Code to produce the figures in the paper
WRITEFIGS = False

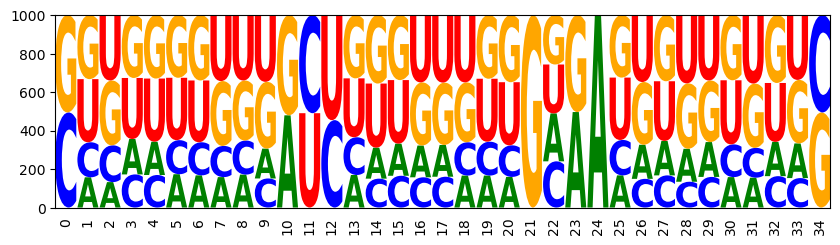

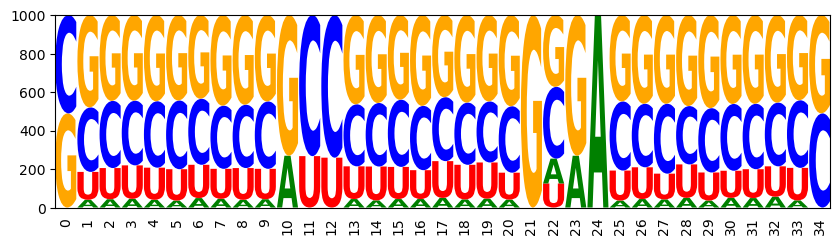

for name,weight in [('minus', -1), ('zero', 0), ('plus', 1)]:

    model.set_feature_weight(weight, 'gc')
    sampler = ir.Sampler(model)
    samples = [sampler.sample() for _ in range(1000)]

    opt_draw_logo(samples, f"gc_content_{name}-logo.svg")
    sequences = assignments_to_seqs(samples)

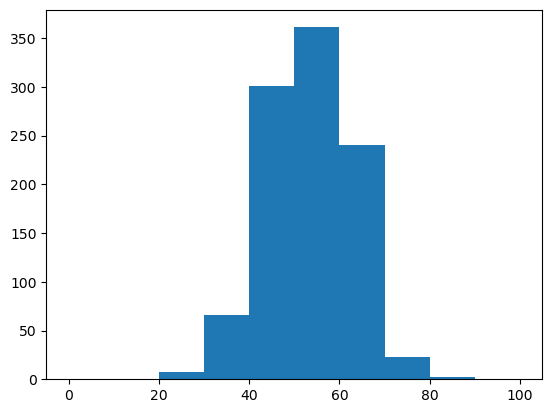

    gc_contents = [100*sum(x in "GC" for x in sequence)/len(sequence) for sequence in sequences]
    h = plt.hist(gc_contents,bins=10,range=(0,100))
    if WRITEFIGS:
        plt.savefig(f"gc_content_{name}-hist.svg")

png

CAUAAUUUUUGUUAAAAGUGAGGAAUUACAUUAUG
GUAAUUUGAUACUGUUGAUAUGUGAAUAUAAUUGC
CUUCUUUAUUAUCAAUGUAUAGAAAUAUAAAGGAG
GGUAGAUAUAGUCUGUAAUAUGAAAAUAUUCUAUC
GUUUAUUCGAAUUUUGGAAUUGAAAAAUUGUAGAC
CUCAGUAAGAAUUUUUUUUUUGUAAAAAAAUUGAG
CUUCUAGUAUAUCAUAUUAUAGGAAUGUAUAGAGG
CUUAAAAUAUAUUAUAUAGUUGGAAGAUUUUUGAG
CUUUUAAUUAAUUUAAUUAUUGUAAAAUAUAAAAG
CUUUUGUUUUGUUAAGGAAAUGUAAAUUUCGAAAG
...

png

GCUAGAUGGUGCCACUGGAGUGAAAGCUUUCUGGC
CACAGAAGUUGCCAGUUUCCGGUGAUGGAUCUGUG
CAGUGACUCGACCUGGGGACGGCAAUGUUUUACUG
CUCAACUCAGAUCCUGAUUAGGAAACUAAGUUGGG
CUGCUUGGACGUCGUUUUCUCGGGAGAGGAGGUAG
GAAUAGGCGGACUUUGCUGCCGUAAGGCGUUAUUC
GUUUCGGUGGAUCCUGUAAAGGAGAUUUUCGGAAC
CGGCUUGGGUGUCGUUUGAGUGGAAAUUCAGGUUG
GGGACUGGGGACCCUUUUUGCGAGAGUAAAGUCUC
GGUGACCGUUACCAACGGCCGGCGAUGGUGUUGCC
...

png

GCAUAUCGCGACCCGCGCGUGGGGACACGAUGUGC
GGCAUAGCGCGCCGUGCUGCCGCAAGGUGUAUGCC
CGGCGCGUCGACCCGACCUGCGGAAGCGGGCGCCG
CGCGCUGGGGGCCCUCCCCGAGGGAUCGGAGCGCG
CUGGUGGGUGGUCCACUUGGCGUGAGCCGCGCCGG
CGGGGGCCGGGCCCCGGCGCCGUGAGGUGCUUCCG
CCGGGGGGCCGCCGGCCGGGUGUGAGCCCCCCCGG
CGCGCCGCGGGCUCCGCUCGCGAGAGCGAGGUGCG
GGUGCGCGGGGUCCCCGGCCGGAGAUGGCUGUACC
GCCGUGGGGGACCUCCCGUGCGCGAGCACUGUGGC
...

png

Set a target of 75% GC content and then draw targeted samples

#[3.3.3]
sampler = ir.Sampler(model)
sampler.set_target( 0.75 * n, 0.01 * n, 'gc' )
samples = [sampler.targeted_sample() for _ in range(1000)]

opt_draw_logo(samples)
sequences = assignments_to_seqs(samples)

gc_contents = [100*sum(x in "GC" for x in sequence)/len(sequence) for sequence in sequences]
gc_content = sum(gc_contents) / len(gc_contents)
print(f"GC content in samples: {gc_content:0.2f}%")

png

CCCAGGGGGGACCCUCCGUCGGCGACGACUUUGGG
GCGGGCGUGGAUCCCGCCCGUGCGAAUGGGCUUGC
GGUUCCAACUGCUGGUUGCGGGGGACCGCGGGGCC
GCCAGUCGGGACCUCCGGGGGGCAAUUCCGCUGGC
GGCGUUGGGGGUCUUUCCCGUGCGAGCGGGGCGUC
GGGGCGCCGUACUGCGGGUUGGCAACGGUCGCUCC
CCGGACUUGGAUCUCGACCGGGGGACCGGGUCCGG
GCCGCGCUAUGCCGUGGGUGCGCAAGUGUCGCGGC
GGGGUCCUUAGCUUAGGCCCUGGGAGGGGGGCCCC
GCUUCGGGUCGCUGACCGCACGCAAGUGCCGGGGC
...
GC content in samples: 74.29%

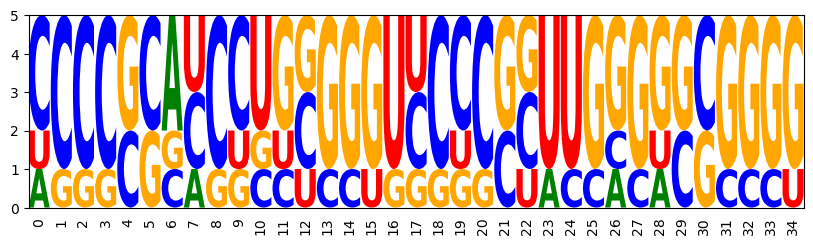

3.4 Controlling energy - Multiple features

#[3.4]
model = ir.Model(n,4)
bps = rna.parse(target)
model.add_constraints(rna.BPComp(i, j) for (i, j) in bps)
model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')

add (base pair) energy control

model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in bps)

for (i, j) in bps], 'energy')

target specific GC and low energy

model.set_feature_weight(-2, 'energy')
sampler = ir.Sampler(model)
sampler.set_target(0.75*n, 0.01*n, 'gc')
samples = [sampler.targeted_sample() for _ in range(10)]

opt_draw_logo(samples)

png

CCGGGCUCCGAGUCGGGCUGGCUAUCCAGGCCUGG
GCCGGGCGCUCUAGGCGCCUCGACUGAGGUUCGGC
CCGGGGCGUGAACCGCGUCCUUCCAGGGACUCCGG
GCGGCCACCCCGUGGGUGGGUUAACAUCCGGCCGC
CCGGGCCGGGCAAUCCGUGCCAGAAGGCAGCCUGG
AGCGCACCACUCGGUGGGGGCCGCCGCUCUGUGCU
AGGUGCUGCGGCUCGCACGGCACCAGCCGGCGCUU
GCGCUAGCGCCUAGCGCCGCGAAUCCGCGUAGCGC
CCGGGGGGCCAUGGGCCCCUAUUGAUAGGCCCCGG
UUCGGCGAGGCUACUUCGCCUGAGGGGGCGCCGGG

add stacking energy control - this could be used in place of defining base pair energyin the code above

#[stackenergy]
model.add_functions([rna.StackEnergy(i, j)
    for (i,j) in bps if (i+1,j-1) in bps], 'energy')

3.5 Targeting Turner energy - Customized features

Note: From this point on, we require RNA energy evaluation based on the Vienna RNA library. Under Mac and Linux, the functionality is accessed via module RNA of the library. Since, this is typically unavailable on Windows, we provide a work around.

#[3.5]
try:
    from RNA import energy_of_struct
except:
    print("*Warning*: the RNA Python bindings cannot be imported.\n\n"
          "For Linux and MaxOS it is recommened to install viennarna via conda. "
          "Windows users are asked to install the Vienna package using the provided Windows installer "
          "and make sure that the command line tool RNAeval is found based on their search path."
         )
    def energy_of_struct(seq,struct):
        try:
            import subprocess
            import re
            p = subprocess.run(["RNAeval"], input=f"{seq}\n{struct}".encode('utf-8'), capture_output=True)
            m = re.search(r'([0-9-.]*)\‍)$',p.stdout.decode('utf-8').split('\n')[1])
            res = float(m[1])
        except Exception as e:
            print(f"Cannot evaluate energy of {seq}, {struct}")
            raise e
        return res

# Restate current model
model = ir.Model(n,4)
bps = rna.parse(target)
model.add_constraints(rna.BPComp(i, j) for (i, j) in bps)
model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')
model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in bps)
                     for (i, j) in bps], 'energy')

add the Turner energy feature

model.add_feature('Energy', 'energy',
    lambda sample, target=target:
        energy_of_struct(rna.ass_to_seq(sample), target))

specify targets and draw targeted samples

sampler = ir.Sampler(model)
sampler.set_target(0.75*n, 0.05*n, 'gc')
sampler.set_target(-10, 0.5, 'Energy')
samples = [sampler.targeted_sample() for _ in range(10)]

opt_draw_logo(samples)
sequences = assignments_to_seqs(samples)

[(seq,energy_of_struct(seq, target)) for seq in sequences]

png

CUACGUGCGGAAGCCGCGCGCUGCAGCGCGUGUGG
GGCCGCUUGGUGGUCAGUGGGGGUCCCUGGCGGCC
CGCCUGCGCUGACAGUGGCUGCUCGCAGCUGGGCG
CCUGCGUGGCCCGGCCAGAUCUCGGGGUUCGCGGG
CCGGCUUGGCCUGGCCGGGGGAUGGUUUCGGCCGG
UGUGCCUACAGAUUGUGCGCCGCCGGGCGGGUGCG
AUCUGGGUGGCCCCUGCGGGUCCUCACCCCCGGAU
UUUGUCCGUGCAGCGCGGGGCUCCAGCCCGGCGGG
CAUCCGUGCGACAUGCAGGCGACGGUGCCCGGGUG
UGCACGGCUCAUGGGGCUGGGCGACCUCACGUGCG





[('CUACGUGCGGAAGCCGCGCGCUGCAGCGCGUGUGG', -10.399999618530273),
 ('GGCCGCUUGGUGGUCAGUGGGGGUCCCUGGCGGCC', -10.100000381469727),
 ('CGCCUGCGCUGACAGUGGCUGCUCGCAGCUGGGCG', -10.100000381469727),
 ('CCUGCGUGGCCCGGCCAGAUCUCGGGGUUCGCGGG', -10.199999809265137),
 ('CCGGCUUGGCCUGGCCGGGGGAUGGUUUCGGCCGG', -10.0),
 ('UGUGCCUACAGAUUGUGCGCCGCCGGGCGGGUGCG', -10.199999809265137),
 ('AUCUGGGUGGCCCCUGCGGGUCCUCACCCCCGGAU', -9.600000381469727),
 ('UUUGUCCGUGCAGCGCGGGGCUCCAGCCCGGCGGG', -9.800000190734863),
 ('CAUCCGUGCGACAUGCAGGCGACGGUGCCCGGGUG', -10.199999809265137),
 ('UGCACGGCUCAUGGGGCUGGGCGACCUCACGUGCG', -9.600000381469727)]

3.6 Multiple target targets

#[3.6]
model = ir.Model(n,4)
model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')
for k, target in enumerate(targets):
    bps = rna.parse(target)
    model.add_constraints(rna.BPComp(i, j) for (i, j) in bps)
    model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in bps)
                         for (i, j) in bps], f'energy{k}')

Target specific GC content and high affinity to all targets

# set weights for energy targets
for k,_ in enumerate(targets):
    model.set_feature_weight(-2, f'energy{k}')

# create sampler and set target
sampler = ir.Sampler(model)
sampler.set_target(0.75*n, 0.05*n, 'gc')
samples = [sampler.targeted_sample() for _ in range(5)]

opt_draw_logo(samples)
sequences = assignments_to_seqs(samples)

# annotate sequences with energies (annotate with Turner energies only if RNA module is available)
try:
    import RNA
    sequences = ["".join([seq]+[f" {energy_of_struct(seq, target):5.1f}" for target in targets]) for seq in sequences]
except ModuleNotFoundError:
    pass

sequences

png

AGGGGCCAGGGGUCCUGGGGGGCACCCCUGCCCCU
CCCCGGGCCUCUCGGGUCCUCGGUUGAGGCCGGGG
CCCCCCAUCCUGGGGGUUCCCCCUUGGGGGGGGGG
UCCCGCACCCUGCGGGUCCCCGUUUGGGGGCGGGG
CCCCCGAUCCUCGGGGUUCCCCGUUGGGACGGGGG





['AGGGGCCAGGGGUCCUGGGGGGCACCCCUGCCCCU -17.6 -21.8 -19.3',
 'CCCCGGGCCUCUCGGGUCCUCGGUUGAGGCCGGGG -16.8 -20.0 -18.0',
 'CCCCCCAUCCUGGGGGUUCCCCCUUGGGGGGGGGG -16.0 -24.2 -21.5',
 'UCCCGCACCCUGCGGGUCCCCGUUUGGGGGCGGGG -19.0 -21.9 -19.3',
 'CCCCCGAUCCUCGGGGUUCCCCGUUGGGACGGGGG -15.5 -23.4 -20.1']

Target specific GC content and specific Turner energies for all targets

add Turner energy features for all target targets

#[add-multi-energy-features]
for k, target in enumerate(targets):
    model.add_feature(f'Energy{k}', f'energy{k}',
        lambda sample, target=target:
            energy_of_struct(rna.ass_to_seq(sample), target))
sampler = ir.Sampler(model)
sampler.set_target(0.75*n, 0.01*n, 'gc')
sampler.set_target( -15, 1, 'Energy0')
sampler.set_target( -20, 1, 'Energy1')
sampler.set_target( -20, 1, 'Energy2')

samples = [sampler.targeted_sample() for _ in range(5)]

opt_draw_logo(samples)
sequences = assignments_to_seqs(samples)

# annotate sequences with energies
["".join([seq]+[f" {energy_of_struct(seq, target):5.1f}" for target in targets]) for seq in sequences]

png

AGGGCCUGGGAGGCCCGAGGGUCGAUCCUGGCCCU
CCCCCAGCUCCUGGGGUCCCCUAUAGGGGUGGGGG
AGGGGCUGGAGGCUCUAGGGGGCGACUCCGCCCCU
GGGGCUUGGGGAGCCCAGGGGCUAGCUCUAGCCCC
UCCUCCACCCUGGGGGUCCCUCCCAAGGGGGAGGG





['AGGGCCUGGGAGGCCCGAGGGUCGAUCCUGGCCCU -14.7 -20.8 -19.8',
 'CCCCCAGCUCCUGGGGUCCCCUAUAGGGGUGGGGG -15.9 -19.6 -19.2',
 'AGGGGCUGGAGGCUCUAGGGGGCGACUCCGCCCCU -15.0 -20.9 -19.3',
 'GGGGCUUGGGGAGCCCAGGGGCUAGCUCUAGCCCC -14.3 -19.2 -20.7',
 'UCCUCCACCCUGGGGGUCCCUCCCAAGGGGGAGGG -15.2 -19.8 -20.7']

Plot dependencies and tree decomposition

from IPython.display import Image

import re

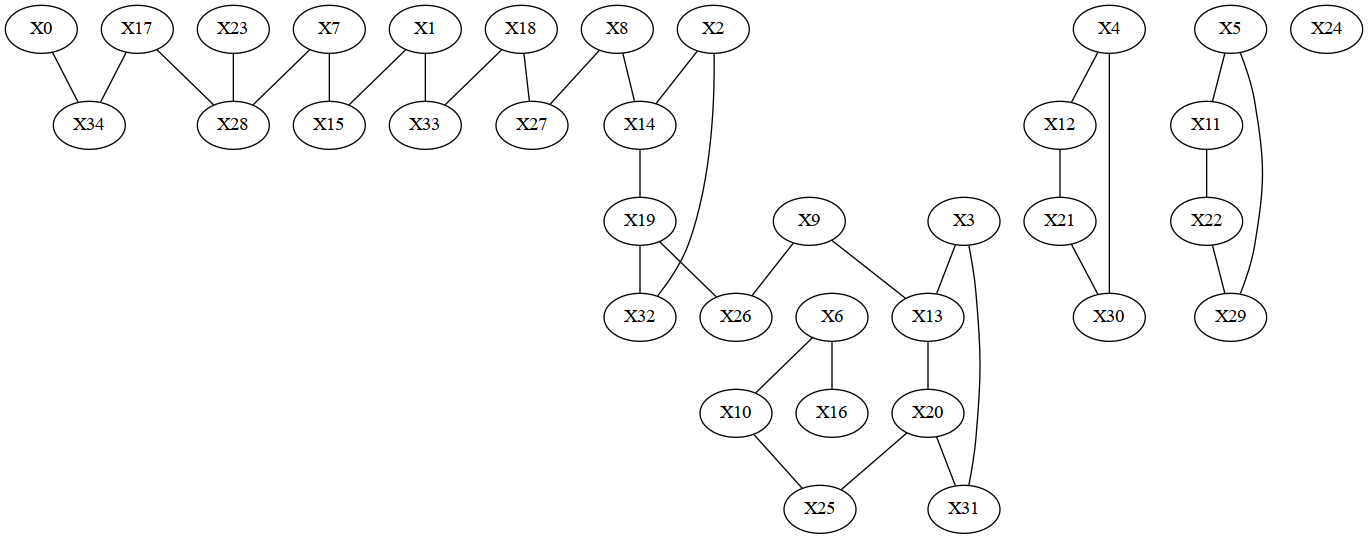

# Plot dependency graph

filename = 'dependency_graph.dot'
model.write_graph(filename, True)

ir.dotfile_to_png(filename)
ir.dotfile_to_pdf(filename)

filename = re.sub(r"dot$","png",filename)

Image(filename=filename,width=600)

png

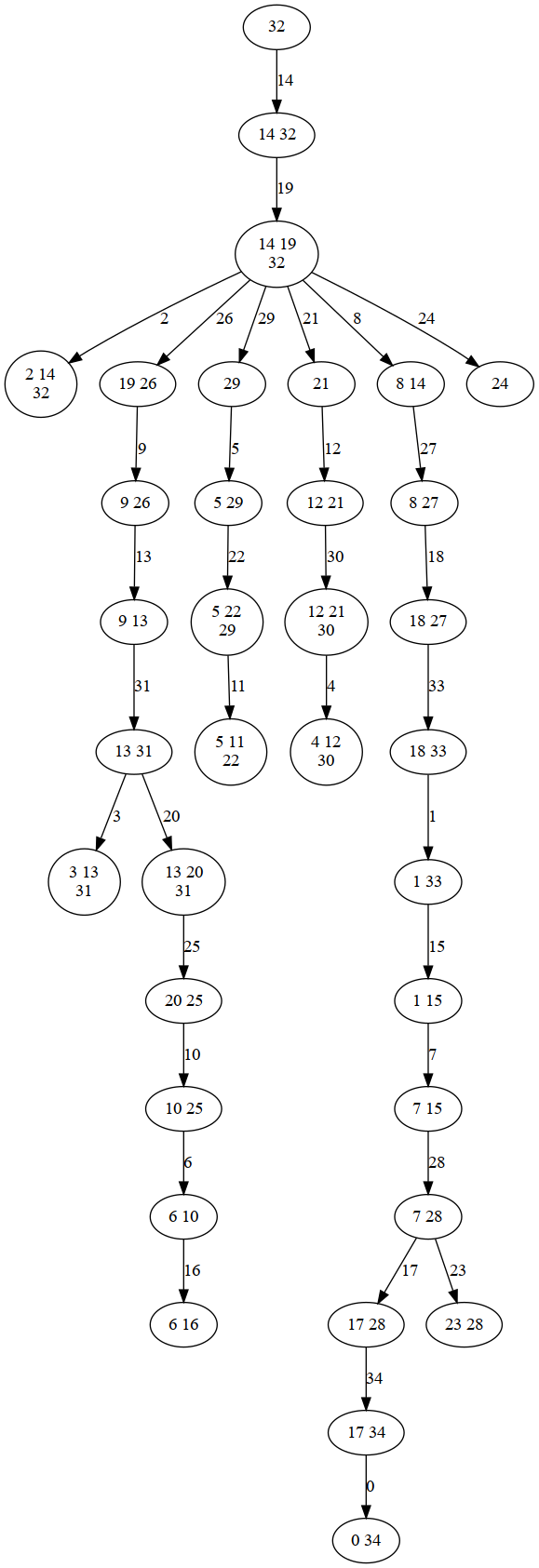

# Plot tree decomposition
sampler = ir.Sampler(model)
print(f"Tree width: {sampler.treewidth()}")
filename="treedecomp"
sampler.plot_td(filename,'png')
sampler.plot_td(filename,'pdf')
sampler.plot_td(filename+".dot",'dot')
Image(filename=filename+".png",width=300)

Tree width: 2

png

3.7 Negative design by sampling

#[3.7]

import RNA

target = targets[0]

n = len(target)

def is_mfe_design(sequence, target):
    fc = RNA.fold_compound(sequence)
    return fc.eval_structure(target) == fc.mfe()[1]

def single_target_design_model(target):
    n, bps = len(target), rna.parse(target)
    model = ir.Model(n, 4)
    model.add_constraints(rna.BPComp(i, j) for (i, j) in bps)
    model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')
    model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in bps)
        for (i, j) in bps], 'energy')
    model.set_feature_weight(-1.5, 'energy')
    return model

solve by direct sampling

sampler = ir.Sampler(single_target_design_model(target))
sampler.set_target(0.7 * n, 0.1 * n, 'gc')
for i in range(50):
    seq = rna.ass_to_seq(sampler.targeted_sample())
    if is_mfe_design(seq, target):
        print(f"{i} {seq}")

2 CUGAGGCGCCUAUGGCGGGGGCCGACCCCCCUCAG
3 GGUCGGAGGGGCCCCCUGAGCUACCGCUCCCGACC
6 GGGCGGAGGCAGGGCCUUCCCUAUCGGGGCCGCCU
7 GGGGGCGGGCUUAGCCCUCGUUAAAGCGAGCCCCC
13 CGCGGCCCGAUGUUCGGGAGCCGCUGCUCGCCGCG
17 CACCGGCCCCAAGGGGGGACGGACCCGUCCCGGUG
18 CCCUGGCCGCUAUGCGGGCGGAAUUCUGCCCAGGG
26 GGGUGGGUCCAAGGGACGCGGCAAACCGCCCACCC
28 GCGGCUAGAGUUACUCUCCGGCAUUCCGGGGCCGC
37 GGCCCUGCGGUUGCCGCCCCCCAAAGGGGAGGGCC
38 UCCUGCGCGCCGUGCGUCGAUGCCCAUCGGCGGGA
40 CGAACCCCCCUACGGGGGCGCCAGUGCGCGGUUCG
42 GCGGGGUCCGGGACGGAUGGGAGCACUCACCCCGC
46 CCCCGCGGUGUAACGCCGCCUACGCAGGUGCGGGG

def target_frequency(sequence, target):
    fc = RNA.fold_compound(sequence)
    fc.pf()
    return fc.pr_structure(target)

sampler = ir.Sampler(single_target_design_model(target))
sampler.set_target(0.7 * n, 0.1 * n, 'gc')
best = 0
for i in range(100):
    seq = rna.ass_to_seq(sampler.targeted_sample())
    freq = target_frequency(seq, target)
    if freq > best:
        best = freq
        print(f"{i} {seq} {freq:.6f}")

0 CGUGCGCCCCACAGGGGGGGGAUUACCCCCGUGCG 0.114687
5 GCCGUACGCCAUUGGCGGGGAAGUUUCUCUGCGGC 0.568546
8 GCACCCGGCCGUUGGCCGGUCGAUAGACCGGGUGC 0.929765

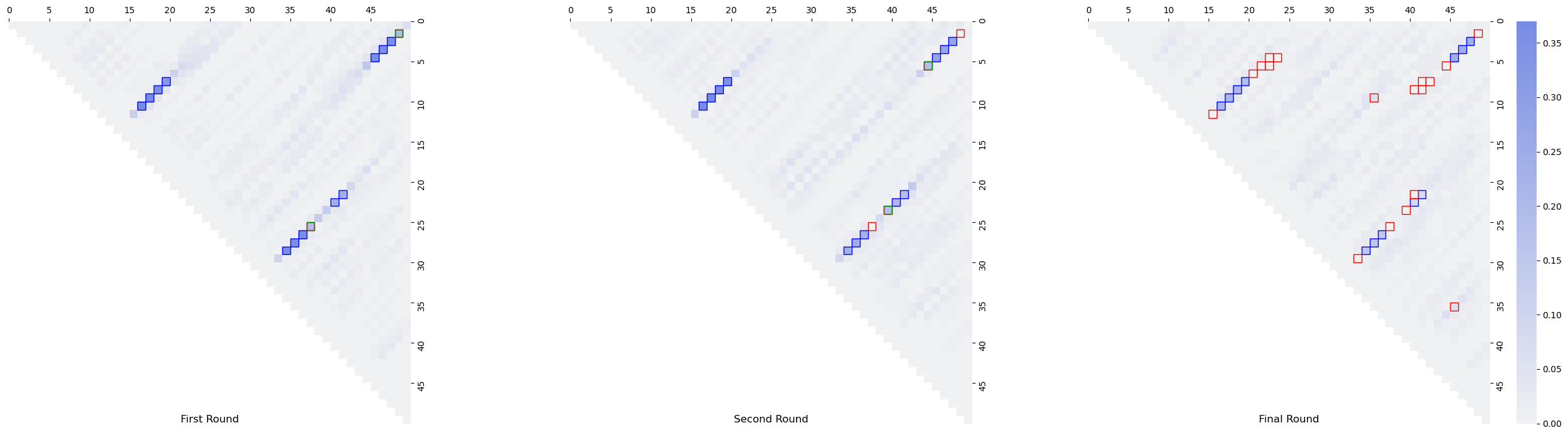

3.8 Larger single-target designs by constraint generation

RNAPOND-like negative design (generating constraints for disruptive base pairs).

#[3.8]
from collections import Counter

# A hard instance, eterna37
# target = "(((((.((((((.((((((.((((((.((((((.((((((....((((((......)))))).)))))).(((((...(((((((...)))))))))))).)))))).((((((((((((...)))))))...))))).))))))....))))))....))))))....)))))"

# a slightly harder instance
target = "..(((..((((.....)))).((...(((.....)))...))...))).."

n = len(target)
bps = rna.parse(target)

def cg_design_iteration():
    model = single_target_design_model(target)
    model.add_constraints(rna.NotBPComp(i, j) for (i, j) in dbps)
    sampler = ir.Sampler(model, lazy=True)
    if sampler.treewidth() > 10 or not sampler.is_consistent():
        return "Not found"
    ctr = Counter()
    found, sol = False, None
    for i in range(100):
        seq = rna.ass_to_seq(sampler.targeted_sample())
        fc = RNA.fold_compound(seq)
        mfe, mfe_e = fc.mfe()
        if fc.eval_structure(target) == mfe_e:
            sol = seq
        ctr.update(rna.parse(mfe))
    ndbps = [x[0] for x in ctr.most_common() if x[0] not in bps]
    dbps.extend(ndbps[:2])
    return sol
dbps, seq = [], None
while seq is None:
    seq = cg_design_iteration()
print(seq)

UACCACCGGGGCAAAUCCCCAUCGUAGGCAACAAGCUAUAGACCAUGGAG

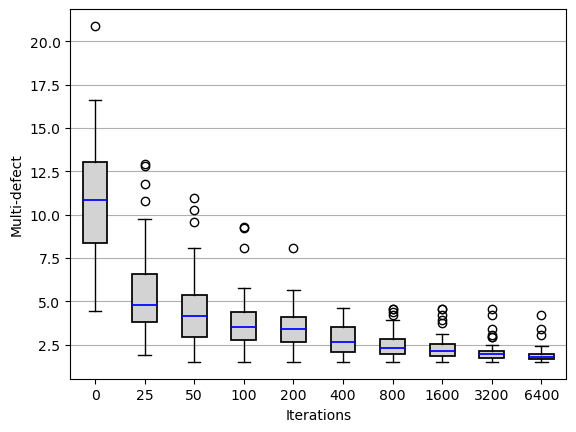

3.9 Negative design by stochastic optimization with partial resampling

Define multi-target design model for resampling of subsets

#[3.9]
import RNA
targets = ["((((((((((...))))((((....))))))))))",
           "((((((.((((((((....))))..))))))))))",
           ".((((((...)))))).(((((((....)))))))"]

#[multi-defect]
def multi_defect(sequence, targets, xi=1):
    k = len(targets)
    fc = RNA.fold_compound(sequence)
    ee = fc.pf()[1]
    eos = [fc.eval_structure(target) for target in targets]
    diff_ee = sum(1/k * (eos[i] - ee) for i in range(k))
    diff_targets = sum(2/(k*(k-1)) * abs(eos[i]-eos[j])
        for i in range(k) for j in range(k) if i<j)
    return diff_ee + xi * diff_targets

import random

import math

Optimize an ojective function by a Monte-Carlo optimization strategy with model resampling

#[mc-optimize]
def mc_optimize(model, objective, steps, temp, start=None):
    sampler = ir.Sampler(model)
    cur = sampler.sample() if start is None else start
    curval = objective(cur)
    best, bestval = cur, curval

    ccs = model.connected_components()
    weights = [1/len(cc) for cc in ccs]

    for i in range(steps):
        cc = random.choices(ccs,weights)[0]
        new = sampler.resample(cc, cur)
        newval = objective(new)
        if (newval >= curval
            or random.random() <= math.exp((newval-curval)/temp)):
            cur, curval = new, newval
            if curval > bestval:
                best, bestval = cur, curval

    return (best, bestval)

#[mc-multi-design-model]
n = len(targets[0])
model = ir.Model(n, 4)
model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')
for target in targets:
    ss = rna.parse(target)
    model.add_constraints(rna.BPComp(i, j) for (i, j) in ss)
    model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in ss)
        for (i, j) in ss], 'energy')
model.set_feature_weight(-0.8, 'energy')
model.set_feature_weight(-0.3, 'gc')

best, best_val = mc_optimize(model,
    lambda x: - multi_defect(rna.ass_to_seq(x),targets,1),
    1000, 0.01)

print(rna.ass_to_seq(best), - best_val)

GGGGUGCGGGGUACCCGGGGGUAGUCCCCUACCCC 2.445469538370768

3.10 A real world example: design of a Tandem-Riboswitch

#[3.10]
seqTheo0 = "AAGUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCACUUCAGAAAUCUC"\
           "UGAAGUGCUGUUUUUUUU"
seqTet0  = "GGCCUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCU"\
           "AGGCCGACAGUGGCCUAGGUGGUCGUUUUUUUUU"

seqTheo  = "NNNNGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCNNNNNNNNNNNNNN"\
           "NNNNNNNNNNUUUUUUUU"
aptTheo  = "(((((...((((((((.....)))))...)))...))))).........."\
           ".................."
termTheo = "...............................(((((((((((((....))"\
           ")))))))))))......."


seqTet   = "NNNNNAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCU"\
           "ANNNNNNNNNNNNNNNNNNNNNNNNUUUUUUUUU"
termTet  = "........................................(((((((((("\
           "(((((......)))))))))))))))........"
aptTet   = "((((((.......(((((....)))))...((((...........)))))"\
           ")))))............................."

spacerLen = 30
aptamers    = aptTheo  + "."*spacerLen + aptTet
terminators = termTheo + "."*spacerLen + termTet
sequence    = seqTheo  + "N"*spacerLen + seqTet

n = len(aptTheo) + spacerLen + len(aptTet)
variants = dict(
    empty = '.'*n,
    aptTheo = aptTheo + '.'*(n-len(aptTheo)),
    aptTet = '.'*(n-len(aptTet)) + aptTet,
    termTheo = termTheo + '.'*(n-len(aptTheo)),
    termTet = '.'*(n-len(aptTet)) + termTet,
    spacer = '.'*len(aptTheo) + 'x'*spacerLen + '.'*len(aptTet)
)

def constrained_efe(sequence,c):
    fc = RNA.fold_compound(sequence)
    fc.hc_add_from_db(c)
    return fc.pf()[1]

def rstd_objective(sequence):
    efe = {k:constrained_efe(sequence,variants[k])
           for k in variants}

    term_stability = efe['termTheo'] + efe['termTet'] \
        - 2*efe['empty']
    apt_target = abs(efe['aptTheo']-efe['empty']-7) \
        + abs(efe['aptTet']-efe['empty']-10)
    spacer_unfolding = efe['spacer']-efe['empty']

    return term_stability + apt_target + spacer_unfolding

rstd_targets = [aptamers, terminators]
n = len(rstd_targets[0])
model = ir.Model(n, 4)

for i, x in enumerate(sequence):
    model.add_constraints(ir.ValueIn(i, rna.iupacvalues(x)))

model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')

for k,target in enumerate(rstd_targets):
    ss = rna.parse(target)
    model.add_constraints(rna.BPComp(i, j) for (i, j) in ss)
    model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in ss)
        for (i, j) in ss], f'energy{k}')
model.set_feature_weight(-0.6, 'energy0')
model.set_feature_weight(-1, 'energy1')
model.set_feature_weight(-0.3, 'gc')

#[rstd-optimize-call]
objective = lambda x: -rstd_objective(rna.ass_to_seq(x))
best, best_val = ir.mc_optimize(model, objective,
                                steps = 500, temp = 0.03)
print(rna.ass_to_seq(best), -best_val)

CGAGGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCCUUGCCACUUAUGUGGCGAGGUUGUUUUUUUUAAUAUAUCAGAGCUUUUUUUUAAUAAUCGCAGCCUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAGGUUGGAAAGGGCCUGGGUGGUUGUUUUUUUUU 1.2818794250488281

Run optimzation in parallel

import concurrent.futures

steps = 500
jobs = 12

def my_rstd_optimize(i):
    random.seed(None)
    objective = lambda x: -rstd_objective(rna.ass_to_seq(x))
    best,best_val = mc_optimize(model, objective, steps = steps, temp = 0.03)
    return rna.ass_to_seq(best), -best_val

with concurrent.futures.ProcessPoolExecutor() as executor:
    res = executor.map(my_rstd_optimize, range(jobs))
res = list(res)

for seq, val in res:
    print(f"{seq} {val:.2f}")
    fc = RNA.fold_compound(seq)
    for k,c in variants.items():
        print(f"{k:20} {fc.eval_structure(c):8.2f} {constrained_efe(seq,c):8.2f} {constrained_efe(seq,c)-constrained_efe(seq,variants['empty']):8.2f}")

GUUUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGCGUGGAACUCCGCGUCCGUUGUUUUUUUUGAUGACCGCAAUAAUCCUCAUACGUAGCAACGGGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACCUGCUGGUACGGGUAGGUGGUCGUUUUUUUUU 3.91
empty                    0.00   -76.32     0.00
aptTheo                -11.90   -69.34     6.98
aptTet                 -15.40   -66.46     9.87
termTheo               -23.10   -76.31     0.01
termTet                -28.20   -76.32     0.00
spacer                   0.00   -72.58     3.74
GUUUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGCGCAGUCCCCUGCGUCCGUUGUUUUUUUUGUCAGCAUAGUAAGUAAAAUAAUGUAAUCGCGGGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACCCGCGUUUACGGGUGGGUGGUUGUUUUUUUUU 4.30
empty                    0.00   -74.90     0.00
aptTheo                -11.90   -67.57     7.33
aptTet                 -17.60   -63.58    11.32
termTheo               -23.00   -74.87     0.03
termTet                -28.00   -74.90     0.00
spacer                   0.00   -72.29     2.61
GUUCGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGCGUCGGCAACGACGUCCGUUGUUUUUUUUUUGGACAACGAUACUUAAAUACGGAAAUGGCGGGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACCUGCGAGUACGGGUAGGUGGUCGUUUUUUUUU 3.97
empty                    0.00   -76.22     0.00
aptTheo                -13.90   -69.66     6.57
aptTet                 -15.40   -66.17    10.06
termTheo               -23.90   -76.16     0.07
termTet                -28.20   -76.22     0.00
spacer                   0.00   -72.81     3.41
GUUCGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGCGCACAACCGUGCGUCCGUUGUUUUUUUUCUUGACAGCGCGCUUGAAAUACGGUAAUUACUGGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACCGGCAAUUACUGGUAGGUGGUUGUUUUUUUUU 3.90
empty                    0.00   -75.42     0.00
aptTheo                -13.90   -68.35     7.06
aptTet                 -15.40   -65.48     9.94
termTheo               -23.60   -75.40     0.02
termTet                -26.10   -75.42     0.00
spacer                   0.00   -71.67     3.75
GUUUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGACCGUUUGCAAACGGUCCGCUGUUUUUUUUAUAUAAUUUAAAUAACCGCGGAAAGUCUCAUUUGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACGGGUGCUAUUCUGUGGGUGGUUGUUUUUUUUU 3.21
empty                    0.00   -70.64     0.00
aptTheo                -11.50   -63.07     7.57
aptTet                 -10.00   -60.69     9.95
termTheo               -24.00   -70.59     0.05
termTet                -23.90   -70.63     0.00
spacer                   0.00   -68.10     2.54
GGUUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGCCCGCCCUUAGGCGGGCUGCUGUUUUUUUUAAUAUAUUCAUACUAAACGCAACUAGCACUCGCUUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAAGCGAGAGGGCGCUUAGGUGGUUGUUUUUUUUU 3.35
empty                    0.00   -78.81     0.00
aptTheo                -13.80   -71.58     7.23
aptTet                 -15.60   -68.97     9.84
termTheo               -28.30   -78.79     0.02
termTet                -26.10   -78.80     0.00
spacer                   0.00   -75.86     2.94
GGAAGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCUUCCGUAGAAAGCUGCGGAGGCUGUUUUUUUUACACGAAUACAUGACUUUUAUUGACCUAACGCGCUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAGUGCGGCUAGGUACUAGGUGGUCGUUUUUUUUU 2.11
empty                    0.00   -72.60     0.00
aptTheo                -15.70   -65.60     7.00
aptTet                 -16.20   -62.70     9.90
termTheo               -22.40   -72.56     0.04
termTet                -28.30   -72.60     0.00
spacer                   0.00   -70.63     1.97
CCGUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGCGGGUGCGAUGGCAUUCGCGCUGUUUUUUUUCACAAACAAUUAUUGCUAAUCUGGAUACAAGGCGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUACGCCCAGAAUGGCGUAGGUGGUUGUUUUUUUUU 5.06
empty                    0.00   -76.41     0.00
aptTheo                -16.20   -69.48     6.93
aptTet                 -17.60   -65.93    10.48
termTheo               -24.20   -76.21     0.20
termTet                -28.10   -76.39     0.02
spacer                   0.00   -72.12     4.29
UUCGGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCUGGAACGUAUGAACGUUCCAGUUGUUUUUUUUUUACUACAUACCCACGCGGUUCUCAAAAAACGACUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAGUCGUUAUGCCGACUGGGUGGUCGUUUUUUUUU 3.29
empty                    0.00   -71.18     0.00
aptTheo                -11.90   -64.15     7.02
aptTet                 -15.50   -61.15    10.03
termTheo               -20.40   -71.08     0.09
termTet                -27.90   -71.17     0.01
spacer                   0.00   -68.04     3.13
CGCCGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGCGGUCGACGGCGGCCGCCGCUGUUUUUUUUCUAUCUUCAAACACAAUACCCAGCGCAUCCCGUAUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAUGCGGUGCAAUGCAUGGGUGGUCGUUUUUUUUU 2.03
empty                    0.00   -77.03     0.00
aptTheo                -18.10   -69.93     7.10
aptTet                 -13.80   -67.04     9.99
termTheo               -27.20   -76.77     0.26
termTet                -26.80   -77.02     0.00
spacer                   0.00   -75.38     1.65
CCCUGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGGGCGGUGACCCGCCUCCGCUGUUUUUUUUUAACAUGAUUCAAACAGAUGGACCGCGAACCCAGUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAUUGGGCAGGUCCAGUAGGUGGUUGUUUUUUUUU 3.60
empty                    0.00   -75.76     0.00
aptTheo                -16.70   -68.81     6.95
aptTet                 -14.20   -66.07     9.69
termTheo               -27.40   -75.65     0.12
termTet                -24.90   -75.76     0.00
spacer                   0.00   -72.64     3.13
GCCCGAUACCAGCAUCGUCUUGAUGCCCUUGGCAGCGGGCCGCCGAGAGGCGGUCCGUUGUUUUUUUUCCAGCAUAAAACGUAGCCAUCUUCAGCCAGGUCAUAAAACAUACCAGAGAAAUCUGGAGAGGUGAAGAAUACGACCACCUAUGGCUCACUGGCCAUAGGUGGUCGUUUUUUUUU 5.19
empty                    0.00   -80.78     0.00
aptTheo                -18.50   -73.78     6.99
aptTet                 -13.50   -70.20    10.58
termTheo               -26.70   -80.15     0.63
termTet                -29.00   -80.77     0.00
spacer                   0.00   -76.81     3.97

APPENDIX

Generate RNAPOND figures

#[APPENDIX]
from collections import Counter

# a slightly harder instance
target = "..(((..((((.....)))).((...(((.....)))...))...))).."

n = len(target)
bps = rna.parse(target)
steps = 100

import matplotlib.patches as patches
import matplotlib.cm as cm
import numpy as np
import seaborn as sns

tick = list(range(0,n,5))
cmap = sns.light_palette((260, 75, 60), input="husl", as_cmap=True)

# Function to draw base pair counts for each sampling
def draw_heatmap(ax, counter, bps, dbps, new_dbps, vmax, steps=steps, cbar=True):
    # Initial count matrix
    counts = np.zeros((n,n))
    mask = np.tri(counts.shape[0], k=-1)
    for bp, count in counter.items():
        counts[bp[0]][bp[1]] = count
    # Normalization
    counts = counts/steps

    sns.heatmap(counts, vmax=vmax/steps, mask=mask, square=True, cmap=cmap, ax=ax, cbar=cbar)
    for i, j in bps:
        ax.add_patch(patches.Rectangle((j,i), 1, 1, fc="none", ec="blue", lw=1))
    for i, j in dbps:
        ax.add_patch(patches.Rectangle((j,i), 1, 1, fc="none", ec="red", lw=1))
    for i, j in new_dbps:
        ax.add_patch(patches.Rectangle((j,i), 1, 1, fc="none", ec="green", lw=1))

    ax.xaxis.tick_top()
    ax.yaxis.tick_right()
    ax.set_xticks(tick)
    ax.set_xticklabels(tick)
    ax.set_yticks(tick)
    ax.set_yticklabels(tick)

def cg_design_iteration():
    model = single_target_design_model(target)
    model.add_constraints(rna.NotBPComp(i, j) for (i, j) in dbps)
    sampler = ir.Sampler(model, lazy=True)
    if sampler.treewidth() > 10 or not sampler.is_consistent():
        return "Not found"
    ctr = Counter()
    found, sol = False, None
    for i in range(steps):
        seq = rna.ass_to_seq(sampler.targeted_sample())
        fc = RNA.fold_compound(seq)
        mfe, mfe_e = fc.mfe()
        if fc.eval_structure(target) == mfe_e:
            found, sol = True, seq
        ctr.update(rna.parse(mfe))
    ndbps = [x[0] for x in ctr.most_common() if x[0] not in bps]
    dbps.extend(ndbps[:2])
    if found:
        records.append((ctr, dbps[:], []))
    else:
        records.append((ctr, dbps[:], ndbps[:2]))
    return found, sol

# One can use seed() provided by infrared to reproduce the result
random.seed(1000)
found, records, dbps, seq = False, [], [], None
while not found: found, seq = cg_design_iteration()
print(seq)

UGCCGAGCCCGGAAAACGGGGAGAUUGCGCCAGUCGCUAGCUAUGCGGGA

to_draw = [records[i] for i in [0, 1, -1]]

vmax = max(map(lambda t: max(t[0].values()), to_draw))

fig, axs = plt.subplots(1,3, figsize=(27,7))
fig.tight_layout()
for i in range(3):
    ax = axs[i]
    counter, disruptive, new_dbps = to_draw[i]
    draw_heatmap(ax, counter, bps, disruptive, new_dbps, vmax, steps=100, cbar=i==2)

axs[0].set_title('First Round', y=-0.01)
axs[1].set_title('Second Round', y=-0.01)
axs[2].set_title('Final Round', y=-0.01)

plt.savefig('count_matrix.pdf', dpi=200, bbox_inches='tight')
plt.show()

png

Generate stochastic optimization figure

import concurrent.futures

def mc_optimize_allsteps(model, objective, steps, temp, start=None):
    res = list()

    sampler = ir.Sampler(model)
    cur = sampler.sample() if start is None else start
    curval = objective(cur)
    best, bestval = cur, curval
    res.append((rna.ass_to_seq(best),bestval))

    ccs = model.connected_components()
    weights = [1/len(cc) for cc in ccs]

    for i in range(steps):
        cc = random.choices(ccs,weights)[0]
        new = sampler.resample(cc, cur)
        newval = objective(new)
        if (newval >= curval
            or random.random() <= math.exp((newval-curval)/temp)):
            cur, curval = new, newval
            if curval > bestval:
                best, bestval = cur, curval
        res.append((rna.ass_to_seq(best),bestval))

    return res

n = len(targets[0])
model = ir.Model(n, 4)
model.add_functions([rna.GCCont(i) for i in range(n)], 'gc')
for target in targets:
    ss = rna.parse(target)
    model.add_constraints(rna.BPComp(i, j) for (i, j) in ss)
    model.add_functions([rna.BPEnergy(i, j, (i-1, j+1) not in ss)
        for (i, j) in ss], 'energy')
model.set_feature_weight(-0.8, 'energy')
model.set_feature_weight(-0.3, 'gc')

objective = lambda x: - multi_defect(rna.ass_to_seq(x),targets,1)

def my_mc_optimize_allsteps(i):
    random.seed(None)
    res = mc_optimize_allsteps(model,objective,6400,0.01)
    return [(b,-v) for b,v in res]

with concurrent.futures.ProcessPoolExecutor() as executor:
    res = executor.map(my_mc_optimize_allsteps, range(48))
res = list(res)

the_steps = [0]+[25*(2**i) for i in range(8+1)]
res2 = [[r[steps][1] for r in res] for steps in the_steps]
#print(res2)
fig, ax = plt.subplots()
box = ax.boxplot(res2,
                 labels=the_steps,
                 patch_artist=True,
                 boxprops=dict(facecolor='lightgrey',linewidth=1.25),
                 medianprops=dict(color='blue', linewidth=1.25)
                )
ax.set_ylabel("Multi-defect")
ax.set_xlabel("Iterations")
ax.yaxis.grid(True)
plt.savefig("optimization.svg")

png

Table of Contents

Online resources and software environment

Disclaimer

1 Introduction

Multiple targets

3 Methods

3.1 Elementary use of Infrared - A simple design model

3.2 Sequence constraints in IUPAC code

3.3 Control of GC content

3.4 Controlling energy - Multiple features

3.5 Targeting Turner energy - Customized features

3.6 Multiple target targets

Target specific GC content and high affinity to all targets

Target specific GC content and specific Turner energies for all targets

Plot dependencies and tree decomposition

3.7 Negative design by sampling

3.8 Larger single-target designs by constraint generation

3.9 Negative design by stochastic optimization with partial resampling

3.10 A real world example: design of a Tandem-Riboswitch

Run optimzation in parallel

APPENDIX

Generate RNAPOND figures

Generate stochastic optimization figure
